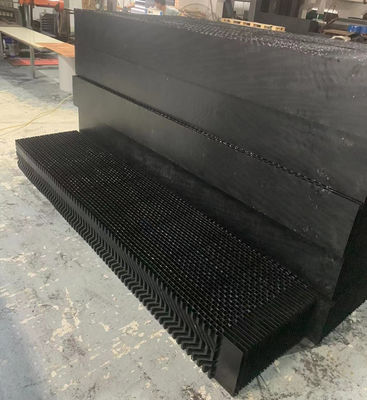

DE150 PVC Drift Eliminator For Cooling Towers
Datos del producto:
| Lugar de origen: | Jiangsu, China |
| Nombre de la marca: | XL |
| Certificación: | SGS |
| Número de modelo: | XL-120-LJ |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10 metros cuadrados |
|---|---|
| Precio: | $20-30/square meters |
| Detalles de empaquetado: | De madera, cartones, paquete de encargo |
| Tiempo de entrega: | 10 días laborables |
| Condiciones de pago: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Capacidad de la fuente: | paga 1000m2/per |
|
Información detallada |
|||
| Material: | PVC, PP, | Tipo de enfriamiento: | Piezas de la torre de enfriamiento |
|---|---|---|---|
| Garantía: | 1 año | Nombre: | Eliminador de deriva de PVC DE150 para torres de enfriamiento |
| Profundidad: | 120 mm | Longitud: | 1220/1830/2440mm/customized |
| Espaciamiento de la hoja: | 20 mm | Uso: | Torre de enfriamiento |
| Cantidad mínima de pedido: | 10 metros cuadrados | Espesor: | 0,6 mm |
| Nombre del producto: | Eliminador de la deriva | ||
Descripción de producto

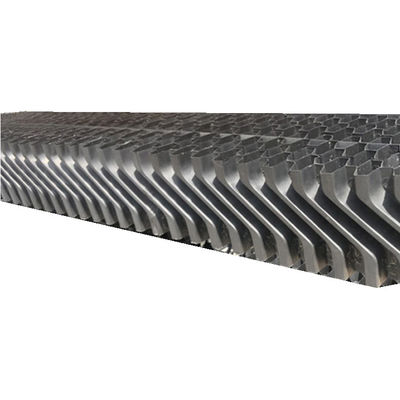

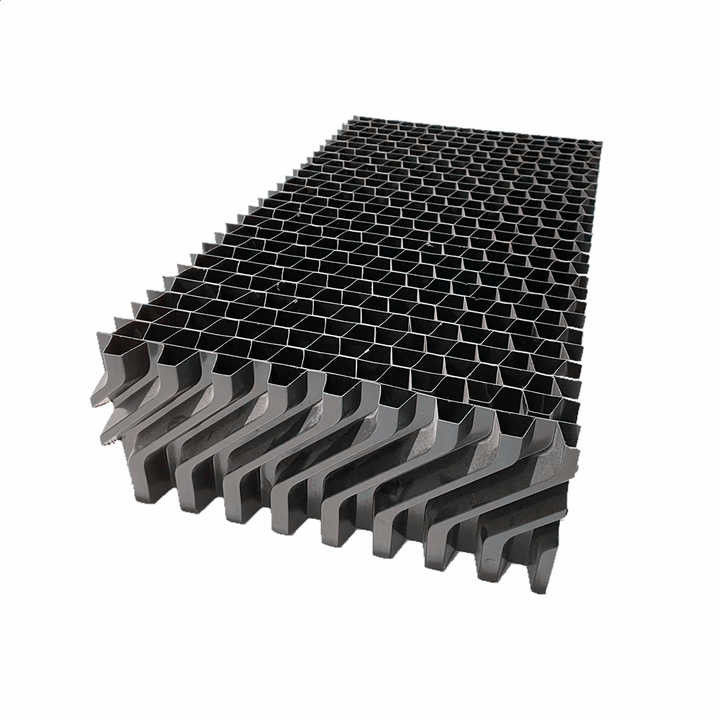

DE150 PVC Drift Eliminator For Cooling Towers
Description:
Drift Eliminators, made out of rigid PVC, are designed to remove entrained particles from air steam efficiently, with minimum pressure drop, thereby reducing the fan power requirement when the air passes through the Drift Eliminator. Water droplets are separated from the air drift at the three direction change points on the drift eliminator.For Cross flow tower applications, the almost vertical water conduits provided by the DE drift eliminator remove the water droplets out of the drift eliminator area and return them back into the tower and does not allow any re-entry.The special locking pin arrangement for DE facilitates quick and simple assembly at site.
Specifications:
| Tech Date | |
| Sheet Width(mm) | 150/120mm |
| Sheet Length | 1220/1830/2440mm/customized |
| Thickness | 0.6-1.2mm/customized |
| Sheet Spacing | 20mm |
| Color | black |
Related Blade Drift Eliminator
Drift eliminator advantages:
1. Maximum drift capture through efficient design
2. Light weight
3. Easy to handle, lift and remove for inspection and service of water distribution system and heat transfer surface (fill and coil)
4. Nested modules to guarantee watertight seam
5. Corrosion free
6. Perfect fit: model specific size kits
PACKING AND DELIVERY
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
